Pressure Vessel Support Stand Weldment

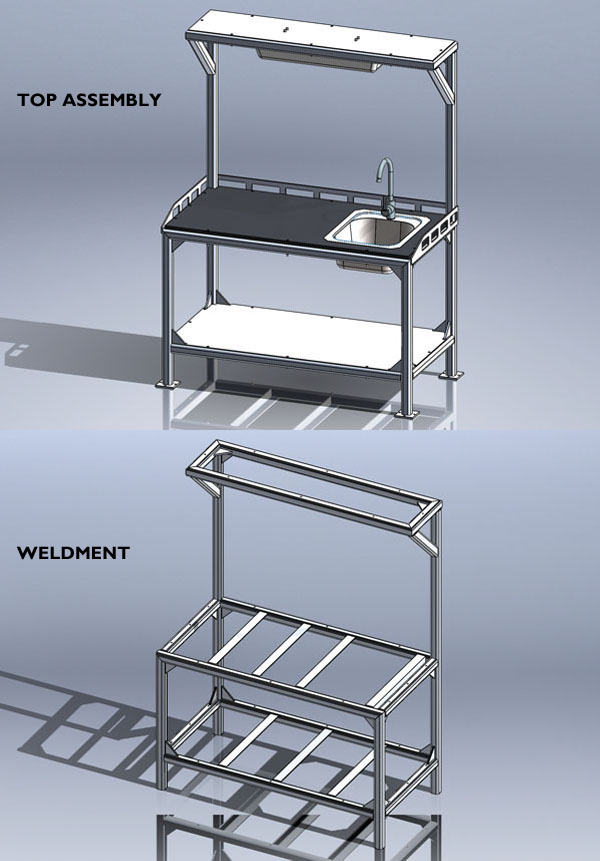

SOLIDWORKS weldments design functionality enables you to design a weldment structure as a single multibody part, sketching the basic framework, creating structural members with groups of sketch segments, and adding elements like gussets and end caps to complete the structure.

* Work from a library of pre-defined structural shapes.
* Generate 3D sketch lines for structural profiles to follow.
* Automatically trim structural members at intersections.
* Add stiffening plates, gussets, and end caps.
* Add optional weld beads to the design.
* Generate drawings, BOMs, cut lists, and other manufacturing documentation.

Pressure Vessel Support Stand

Weldment Model

Pressure Vessel Support Stand Drawing with Cut-List

Weldment Drawing

Weldment Model and Drawing Shown Above

The Pressure Vessel Support Stand was created from an initial 3D sketch, which defined the basic shape of the support stand. Different structural beams, from the SolidWorks structural beam library, were assigned to the various segments of the 3D sketch. Loads and boundary conditions are then applied to the model, the model is meshed, and the FEA analysis is run. The results of this FEA analysis can be found by clicking on the text or image below the heading Support Stand Weldment FEA at the top right hand section of this page.

Support Stand Weldment FEA

Click on this text, or Beam Analysis image below, to see the FEA (Finite Element Analysys) that was performed on the Pressure Vessel Support Stand to ensure its structural integrity. The loads used for this FEA analysis were: *Total Tank and Contents Wt. = 24014 Lbs. *150 MPH wind load = 2114 Lbs.

Oilfield Welding

Welders in the oil and gas industry operate welding equipment to fuse metals using various cutting, gouging and welding processes on pipelines, rigs, plants and facilities.

They perform a variety of duties on the job site, including working on pipeline systems, derrick and pump jack repair, installations, and shutting in or closing off a producing well.

Ocean Welding

Underwater welding or repairs on vessels is normally only of a semi-permanent nature. Ships plates flex in rough water, and underwater welds lose about 20 percent of their strength, and about 50 percent of their ductility because of the instantaneous cooling, and should be only considered for temporary repairs.
