2D Drawings Converted to 3D Solid Models

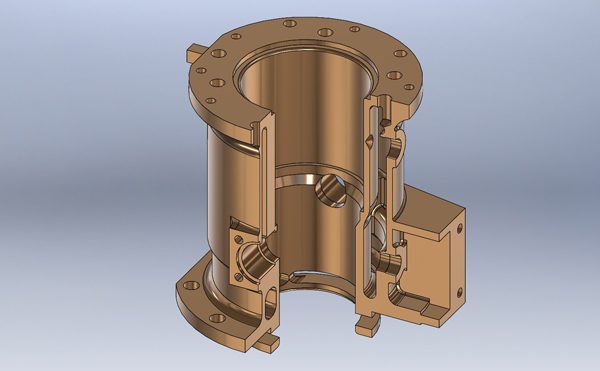

At Delta Engineering, we can take your 2D drawings and sketches, and convert them to 3D models, as shown with the detail drawing and its associated solid model below. The solid model can be analyzed to determine mass properties, volumes, surface areas, weights, etc. The model below contains a coordinate system at the model's origin, and a symbol indicating the location of its center of gravity. A SolidWorks mass properties calculation derermined the following mass properties:
1. Center of Gravity:
X = -101.93 mm.
Y = 0.10 mm.
Z = -0.09 mm.
2. Mass = 8.27 kg.
3. Surface Area = 141446 mm^2.
4. Volume = 1046214 mm*3.

We also have experience with reverse engineering existing equipment, which consists of creating drawings of existing equipment, calculating mass properties, and incorporating customer requested improvements.

Machine Drawings

Machine drawings are an indispensable communicating medium employed in industries to furnish all the information required for the manufacture and assembly of the components of a machine.

Industries are required to follow certain drafting standards as approved by the ISO. When these are followed, drawings can convey the same information to all concerned.

Production Drawings

Production drawings should furnish all the dimensions, limits, and special finishing processes to guide the machinist on the shop floor in producing the component.

Solid Modeling

Solid Models are rigorous computer data structures that contain an unambiguous representation of the nominal geometry of an object. Solid models and solid modeling operations enable geometric computations about the design that were not possible with earlier CAD systems. With solid modeling, the emphasis in CAD is shifted from data for visual communication to product data models that can be used for more sophisticated computer analyses and more automation.
